Product Description
Power Unit

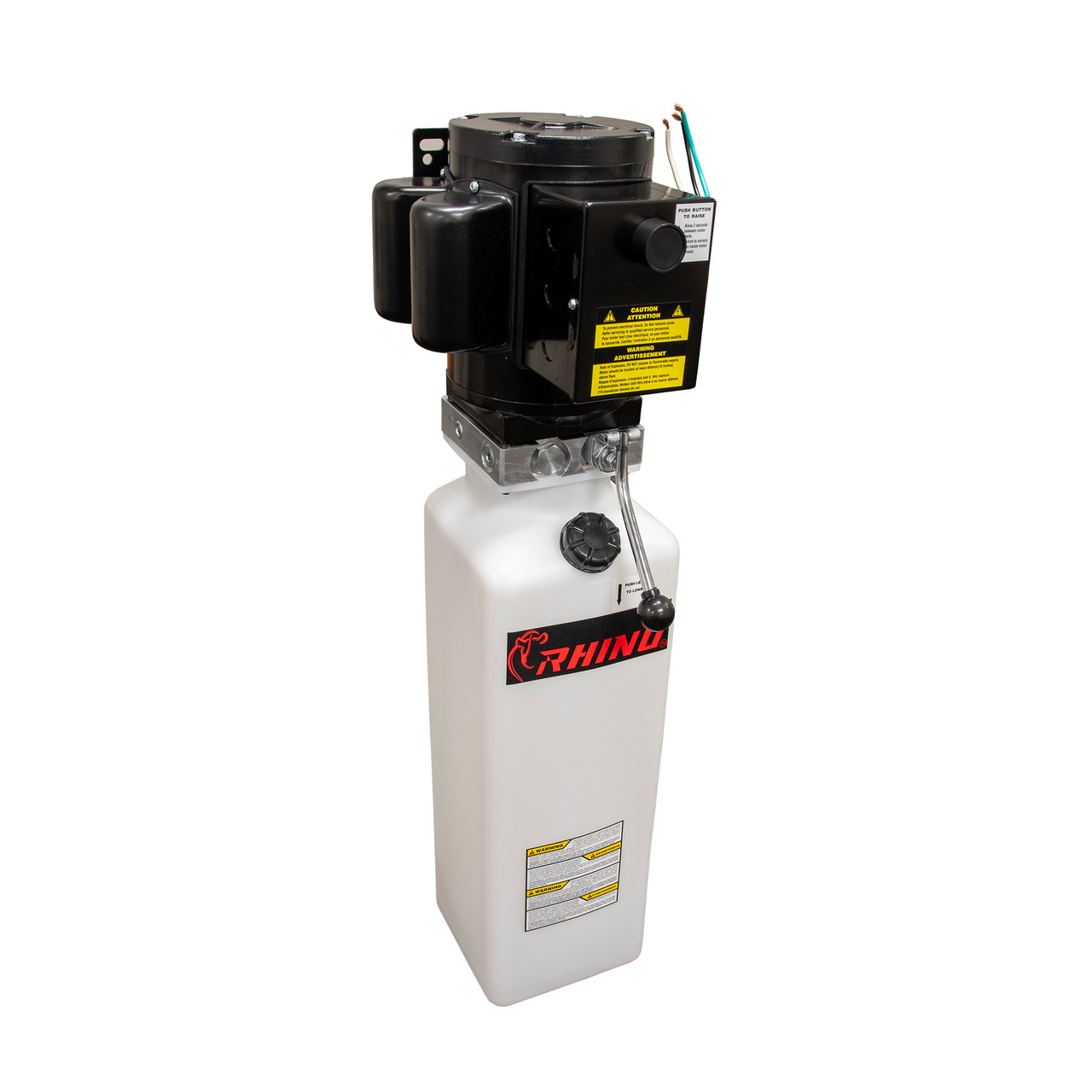

5hp, 1ph, 3520RPM, 3 GPM 208-230 VAC, 1PH, 50/60hz, 2930/3520 RPM, 5.0 HP Motor3.6 Gallon Reservoir 5HP 230V AC Hydraulic power unit with power up and gravity down functions for above ground vehicle lifts. This unit is used for raising and lowering your hoist. A push of a button raises the lift and a manual control allows for controlled lowering. This unit features an adjustable pressure relief valve and 3.6 GAL opaque tank. Optional Reservoir Available: BH-7008-84 (6-Gallon Tank) Lowering Valve: Manual operated Buffer Valve: Z1-4 Pressure Relief Valve: 2850PSI (+/-100PSI), Pre-set Check Valve: M20x1.5 Motor: 208-230V, 1PH, 50/60HZ, 2930/3520rpm, 5.0 HP Gear Pump: 3.2cc/r 3gpm Suction Filter: 100 mesh Tank: 3.6 gallon, Usable, OPAQUE, Plastic
NOTE: Requires 30amp breaker and suitable wiring.
Need additional replacement parts? See our hundreds of other listings. Don't see what you need, or have a question? Email For Availability (sales@insacoa.com). INSACOA replacement parts meet or exceed OEM specifications.
